Intel Core 2 Duo E8200 - EU80570PJ0676M / BX80570E8200 / BXC80570E8200

CPU » Intel » Core 2 families » Core 2 Duo » E8200

Jump to

  • Specifications
  • Compare 2 CPUs
  • Price chart
  • FAQ
  • Benchmarks
  • CPUID
  • Related CPUs
  • Pictures
  • Comments

Compare Intel E8200 specs with one or more CPUs:

Get HTML and forum link code in case if you want to link to this page:

Find CPUs

Find Core 2 Duo CPUs with:

Same socket

Where to buy

Intel Core 2 Duo E8200 specifications

The specs can be used for short-term
listings on auction and classifieds sites
General information
TypeCPU / Microprocessor
Market segmentDesktop
Family
Intel Core 2 Duo
Model number  ?
E8200
CPU part numbers
  • EU80570PJ0676M is an OEM/tray microprocessor
  • EU80570AJ0676M is an OEM/tray microprocessor
  • BX80570E8200 is a boxed microprocessor with fan and heatsink
  • BXC80570E8200 is a boxed microprocessor with fan and heatsink
  • BX80570E8200A is a boxed microprocessor with fan and heatsink
Frequency  ? 2667 MHz
Bus speed  ? 1333 MHz
Clock multiplier  ? 8
Package775-land Flip-Chip Land Grid Array (FC-LGA8)
1.48" x 1.48" (3.75 cm x 3.75 cm)
SocketSocket 775
Introduction dateJan 7, 2008
Price at introduction$163
S-spec numbers
Part number ES/QS processors Production processors
  Q9HR Q9JE QZRN SLAPH SLAPP
BX80570E8200    +
BX80570E8200A    +
BXC80570E8200    +
EU80570AJ0676M + +
EU80570PJ0676M+ + +
Architecture / Microarchitecture
MicroarchitectureCore
Processor core  ? Wolfdale
Core steppings  ? A1 (QZRN)
C0 (Q9HR, Q9JE, SLAPP)
CPUIDs676 (Q9JE)
10676 (SLAPP)
Manufacturing process0.045 micron
410 million transistors
Die107mm2
Data width64 bit
The number of CPU cores2
The number of threads2
Floating Point UnitIntegrated
Level 1 cache size  ? 2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size  ? shared 6 MB 24-way set associative cache
MultiprocessingUniprocessor
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4.1 / Streaming SIMD Extensions 4.1  ?
  • EM64T / Extended Memory 64 technology / Intel 64  ?
  • VT-x / Virtualization technology  ?
Security Features
  • NX / XD / Execute disable bit  ?
  • TXT / Trusted Execution technology
Low power features
  • Enhanced SpeedStep technology  ?
  • Stop Grant state  ?
  • Halt state
  • Extended Halt state
  • Extended Stop Grant State
  • Sleep state  ?
  • Deep Sleep state  ?
  • Deeper Sleep state  ?
Integrated peripherals / components
Integrated graphicsNone
Electrical / Thermal parameters
V core  ? 0.85V - 1.3625V
Minimum/Maximum operating temperature  ? 5°C - 72.4°C
Minimum/Maximum power dissipation  ? 6 Watt (TDP in Deeper Sleep mode) / 100.31 Watt
Thermal Design Power  ? 65 Watt
Notes on Intel Core 2 Duo E8200
  • Binary compatible with 32-bit x86 software
  • Bus frequency is 333 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 1333 MHz
  • BXC80570E8200 is a Chinese version

Popular Core 2 Duo E8200 comparisons

Detailed side-by-side comparison

If you want to compare in detail the Intel E8200 with any other processor from our CPU database please select desired processor using one of the following methods:

  • Browse CPUs by:

  • Find processor by its name and/or partial specifications:

    You can specify any of the following: manufacturer name, family name, model number, part number, core name, microarchitecture, manufacturing process, socket name, operating frequency, bus speed, the number of cores and threads, cache size, TDP and GPU type. Here are some examples of searches: E8200, EU80570PJ0676M, Intel Core 2 Duo 2.667GHz, Wolfdale Socket 775 65 Watt, Core 2 cores 2 threads, 0.045 micron 6 MB noGPU


Historical price chart

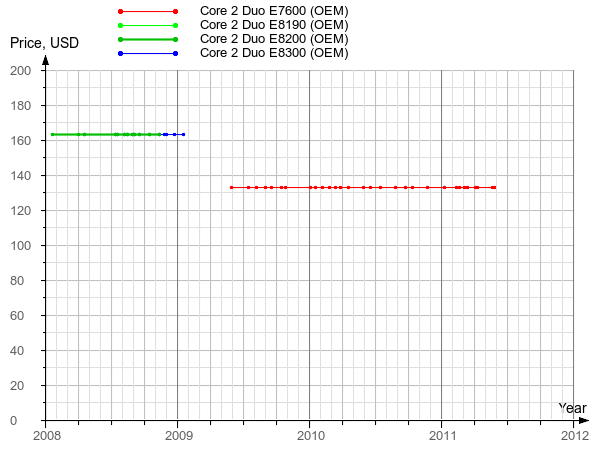

The chart below shows official prices of Intel Core 2 Duo E7600, E8190, E8200 and E8300 processors:

Historical official prices of Core 2 Duo E7600, E8190, E8200 and E8300 processors

FAQ

Q: I have an Intel Core 2 Duo E8200 processor. Can I upgrade it?
A: Probably yes. CPU compatibility is determined by your motherboard. Please check CPU-Upgrade.com website for CPU support list for your board.

Core 2 Duo E8200 Overclocking

Sorry, overclocking information for this processor is not available at this time.

Intel E8200 Benchmarks and Performance evaluation

Compare Intel E8200 benchmark results with all tested CPUs from one of the following families:

You can also compare this model with other tested CPUs in our

For E8200 charts, comparing multi- and single-threaded performance of this microprocessor with other Core 2 Duo processors and the fastest AMD and Intel x86 chips, please visit Intel Core 2 Duo E8200 multi-threaded and single-threaded performance pages.

For averaged performance in integer, floating-point, SIMD and memory-intensive applications please see the next section.


Integer, Floating-Point, SIMD and Memory performance

The graphs below show up to 10 microprocessors with approximately the same level of performance in integer (CPU), floating-point (FPU), SIMD and memory benchmarks. All processors were not overclocked, and were tested at a nominal frequency, with a stock heatsink and default BIOS settings. Click on the '?' mark next to each model name to see specifications of that model, and details of the test platform.

Benchmarked processor:

S-spec number:SLAPP
CPU ID:0676h
CPU vendor string:GenuineIntel
CPU name string:Intel(R) Core(TM)2 Duo CPU E8200 @ 2.66GHz

Integer performance

Model / Part number   Result
Intel Core 2 Duo E7500
110%  ?
Intel Core 2 Duo E8400
109.9%  ?
Intel Core 2 Duo E8300
106.2%  ?
Intel Core 2 Duo E7400
104.9%  ?
AMD Athlon II X2 270
103.8%  ?
Intel Core 2 Duo E8200
100%  ?
Intel Core 2 Duo E6700
99.5%  ?
Intel Core 2 Duo E6750
99.5%  ?
AMD Athlon II X2 260 (rev. C3)
97.7%  ?
AMD Athlon II X2 255 (rev. C3)
94.6%  ?
AMD Athlon II X2 255 (rev. C2)
94.6%  ?

Floating Point performance

Model / Part number   Result
Intel Core 2 Duo E6850
105.3%  ?
AMD Athlon II X2 215 (rev. C2)
104.3%  ?
AMD Athlon II X2 235e
104.2%  ?
AMD Athlon 64 X2 5400+ (65W, BE)
103.2%  ?
AMD Athlon II X2 210e
100.3%  ?
Intel Core 2 Duo E8200
100%  ?
AMD Athlon 64 X2 5000+ (89W, rev. F3)
95.9%  ?
AMD Athlon 64 X2 5050e
95.7%  ?
Intel Core 2 Duo E7200
94%  ?
Intel Core 2 Duo E6700
93.7%  ?
Intel Pentium Extreme Edition 965
93.4%  ?

MMX / SSE / SSE2 performance

Model / Part number   Result
Intel Core 2 Duo E8300
106.2%  ?
Intel Core 2 Duo E7400
104.7%  ?
AMD Athlon II X2 260 (rev. C3)
103.9%  ?
AMD Athlon II X2 255 (rev. C3)
100.7%  ?
AMD Athlon II X2 255 (rev. C2)
100.7%  ?
Intel Core 2 Duo E8200
100%  ?
AMD Athlon II X2 250 (rev. C3)
97.5%  ?
AMD Athlon II X2 B24 (rev. C2)
97.5%  ?
AMD Athlon II X2 250e
97.5%  ?
AMD Athlon II X2 250 (rev. C2)
97.5%  ?
Intel Core 2 Duo E6700
95.4%  ?

Memory-intensive program performance

Model / Part number   Result
Intel Core i3-520
105.6%  ?
Intel Core 2 Duo E8400
105.2%  ?
Intel Core 2 Duo E6850
104.9%  ?
Intel Core 2 Duo E8300
103.3%  ?
Intel Core 2 Duo E7600
101.9%  ?
Intel Core 2 Duo E8200
100%  ?
Intel Core 2 Duo E7500
98.9%  ?
Intel Core 2 Duo E7400
95.6%  ?
Intel Core 2 Duo E6700
95.5%  ?
AMD Athlon II X2 270
94.7%  ?
Intel Core 2 Duo E6750
93%  ?

CPU ID information for the Core 2 Duo E8200

Detailed characteristics of processor's internals, including x86 instruction set extensions and individual instructions, high- and low-level technologies, are listed below. This list was acquired from an actual Intel Core 2 Duo E8200 processor with the help of the x86 CPUID instruction. Any discrepancies between CPUID features and official specifications are likely due to some features being disabled in BIOS, or due to a bug in our CPUID decoding algorithm. Different steppings of Intel processors may also have slightly different features.

Our CPUID database contains 5 records for this microprocessor. See all submitted records.

Use our CPU identification tool to check features of your processor.

Submission details
Manufacturer:IntelMeasured frequency:2671 MHz
CPU Family:Core 2 DuoComment:
Processor Number:E8200
Part number (supplied):EU80570PJ0676MSubmitted by:xhoba
Part number (guessed):
EU80570PJ0676M
Submitted on:
S-Spec Number:SLAPPCWID version:0.5
General information
Vendor:GenuineIntel
Processor name (BIOS):Intel(R) Core(TM)2 Duo CPU E8200 @ 2.66GHz
Cores:2
Logical processors:2
Processor type:Original OEM Processor
CPUID signature:10676
Family: 6 (06h)
Model:23 (017h)
Stepping: 6 (06h)
TLB/Cache details:64-byte Prefetching
Data TLB: 4-KB Pages, 4-way set associative, 256 entries
Data TLB: 4-MB Pages, 4-way set associative, 32 entries
Instruction TLB: 2-MB pages, 4-way, 8 entries or 4M pages, 4-way, 4 entries
Instruction TLB: 4-KB Pages, 4-way set associative, 128 entries
L1 Data TLB: 4-KB pages, 4-way set associative, 16 entries
L1 Data TLB: 4-MB pages, 4-way set associative, 16 entries

Cache details
Cache: L1 data L1 instruction L2
Size: 2 x 32 KB 2 x 32 KB 6 MB
Associativity: 8-way set
associative		 8-way set
associative		 24-way set
associative
Line size: 64 bytes 64 bytes 64 bytes
Comments: Direct-mapped Direct-mapped Non-inclusive
Direct-mapped
Shared between all cores

Supported instructions
Instruction set extensionsAdditional instructions
MMX CLFLUSH
SSE CMOV
SSE2 CMPXCHG16B
SSE3 CMPXCHG8B
SSSE3 FXSAVE/FXRSTORE
SSE4.1 MONITOR/MWAIT
  SYSENTER/SYSEXIT

Integrated features and technologies
Major featuresOther features
On-chip Floating Point Unit 36-bit page-size extensions
64-bit / Intel 64 64-bit debug store
NX bit/XD-bit Advanced programmable interrupt controller
Intel Virtualization CPL qualified debug store
Intel Trusted Execution technology Debug store
Enhanced SpeedStep Debugging extensions
  Digital Thermal Sensor capability
  LAHF/SAHF support in 64-bit mode
  Machine check architecture
  Machine check exception
  Memory-type range registers
  Model-specific registers
  Page attribute table
  Page global extension
  Page-size extensions (4MB pages)
  Pending break enable
  Perfmon and Debug capability
  Physical address extensions
  Self-snoop
  Thermal monitor
  Thermal monitor 2
  Thermal monitor and software controlled clock facilities
  Time stamp counter
  Virtual 8086-mode enhancements
  xTPR Update Control

CPUs, related to Intel Core 2 Duo E8200

The list of related CPUs does not include all models. For the complete list, please see the related "Core" processors for socket 775 page.

Model Cores /
Threads		 Frequency L2
cache		 TDP Features
Intel Core 2 Duo family, Socket 775
   Core 2 Duo E73002 / 22.66 GHz3 MB65WVT, TXT, ESS>
   Core 2 Duo E67002 / 22.66 GHz4 MB65WVT, TXT, ESS>
   Core 2 Duo E67502 / 22.66 GHz4 MB65WVT, TXT, ESS>
   Core 2 Duo E7400 (LP)2 / 22.8 GHz3 MB VT, TXT, ESS>
   Core 2 Duo E74002 / 22.8 GHz3 MB65WVT, TXT, ESS>
   Core 2 Duo E81902 / 22.66 GHz6 MB65WVT, TXT, ESS>
   Core 2 Duo E82002 / 22.66 GHz6 MB65WVT, TXT, ESS
   Core 2 Duo E75002 / 22.93 GHz3 MB65WVT, TXT, ESS>
   Core 2 Duo E82902 / 22.83 GHz6 MB65WVT, TXT, ESS>
   Core 2 Duo E76002 / 23.06 GHz3 MB65WVT, TXT, ESS>
   Core 2 Duo E83002 / 22.83 GHz6 MB65WVT, TXT, ESS>
   Core 2 Duo E68502 / 23 GHz4 MB65WVT, TXT, ESS>
   Core 2 Duo E84002 / 23 GHz6 MB65WVT, TXT, ESS>
   Core 2 Duo E85002 / 23.16 GHz6 MB65WVT, TXT, ESS>
   Core 2 Duo E86002 / 23.33 GHz6 MB65WVT, TXT, ESS>
Intel Core 2 Duo family, Core micro-architecture, Other sockets
   Core 2 Duo E63052 / 21.86 GHz2 MB65WVT, TXT, ESS>
   Core 2 Duo E64052 / 22.13 GHz2 MB65WVT, TXT, ESS>
Other families, Core micro-architecture, Socket 775
   Celeron 440 (B)1 / 12 GHz512 KB VT, TXT, ESS>
   Celeron 4501 / 12.2 GHz512 KB35WVT, TXT, ESS>
   Celeron E34002 / 22.6 GHz1 MB65WVT, TXT, ESS>
   Celeron E35002 / 22.7 GHz1 MB65WVT, TXT, ESS>
   Pentium E68002 / 23.33 GHz2 MB65WVT, TXT, ESS>
   Core 2 Quad Q96504 / 43 GHz12 MB95WVT, TXT, ESS>
   Core 2 Extreme QX97704 / 43.2 GHz12 MB136WVT, TXT, ESS>
 • Within each category, the CPUs are sorted from slower (at the top) to faster (at the bottom)
 • Background color of specs and features indicate whether they are better or worse than similar spec/feature of the Core 2 Duo E8200
 • Click on the >  icon to compare any CPU in the table with the Intel Core 2 Duo E8200 (Javascript required).
 • Features abbreviations:
VT - Virtualization
TXT - Trusted Execution technology
ESS - Enhanced SpeedStep

Pictures (7)


2008-09-13 20:24:13
Posted by: Zdenek



2008-09-13 20:24:58
Posted by: Zdenek



2008-09-25 17:37:15
Posted by: Zdenek


E8200
2010-11-17 10:35:36
Posted by: Tommek

Changed 13.11.2010 for E2200 		E8200
SLAPH
2014-10-22 12:02:06
Posted by: Dan

sSpec SLAPH was never added to the database. 		SLAPH
Box pictures
2014-10-31 00:39:41
Posted by: gshv

Front view 		Box pictures

2014-11-03 12:33:02
Posted by: gshv

Back view
Comments (5)

You're welcome to post suggestions, corrections, missing information, your own personal Intel Core 2 Duo E8200 review, or your experience with the microprocessor. For all other questions please proceed to the Core 2 Duo E8200 discussion page.

power saving & less fan noise

2008-02-12 17:19:35
Posted by: malc from the UK

please can someone tell me if a cpu such as this one can be under-clocked ?

just so that the computer can be run with lower fan rpm and therefore less noise ?

thanks

Response: I think they cannot be underclocked, but I may be mistaken. Please post the question in the forum.

Re: power saving & less fan noise

2008-02-29 06:25:36
Posted by: tthat guy

Yes they can be underclocked. With mine the multiplier switches between 6 and 8x depending on how much load the system is under so it basically underlocks to 2Ghz when you're not doing much.

But if you want, yes you can underclock it more than that by lowering the FSB and it'll work fine. You probably won’t see much benefit though because this is a very efficient CPU. I think mine uses about 5watts when idle. If you’re worried about noise just buy a better heatsink, the one I use is about 4 times bigger than the stock one.

Underclocking

2008-07-08 09:19:31
Posted by: lexluthermiester

All Core2/CoreQuad CPU's can be underclocked. Reducing the multiplyer is a valid method. Reducing the FSB is the other.

response

2010-04-22 00:24:17
Posted by: adrian

Frome the bios when yu set intel enhanced state enabled the procesor underclock automatically to a dawnn clock rate difference in performance its veryy tiny almost unfilled are very smart cpus

wrong sSpec number ?

2013-06-14 18:12:54
Posted by: George

Why can't i find info on sSpec number SLAPH , Core 2 Duo E8200 ?

wrong sSpec number ?

Response: It's a rare S-Spec number. I will add it to the S-Spec database this weekend.
Last modified: 27 May 2021
Terms and Conditions · Privacy Policy · Contact Us (c) Copyright 2003 - 2021 Gennadiy Shvets
