Intel Core 2 Extreme QX6850 HH80562XJ0808M (BX80562QX6850)

CPU » Intel » Core 2 families » Core 2 Extreme » QX6850

Jump to

  • Specifications
  • Compare 2 CPUs
  • Price chart
  • FAQ
  • CPUID
  • Related CPUs
  • Pictures
  • Comments
Compare Intel QX6850 specs with one or more CPUs:

Get HTML and forum link code in case if you want to link to this page:

Find microprocessors

Find all CPUs with the following features:

Same family
Same socket
Same CPU core

Intel Core 2 Extreme QX6850 specifications

The specs can be used for short-term
listings on auction and classifieds sites
General information
TypeCPU / Microprocessor
Market segmentDesktop
Family
Intel Core 2 Extreme
Model number  ?
QX6850
CPU part numbers
  • HH80562XJ0808M is an OEM/tray microprocessor
  • BX80562QX6850 is a boxed microprocessor
Frequency  ? 3000 MHz
Bus speed  ? 1333 MHz
Clock multiplier  ? 9
Package775-land Flip-Chip Land Grid Array (FC-LGA6)
1.48" x 1.48" (3.75 cm x 3.75 cm)
SocketSocket 775
Introduction dateJul 16, 2007
Price at introduction$999
S-spec numbers
Part number ES/QS processors Production processors
  QXTN SLAFN
BX80562QX6850 +
HH80562XJ0808M++
Architecture / Microarchitecture
MicroarchitectureCore
Processor core  ? Kentsfield
Core stepping  ? G0 (QXTN, SLAFN)
CPUID6FB (SLAFN)
Manufacturing process0.065 micron
582 million transistors
Die286mm2
Data width64 bit
The number of CPU cores4
The number of threads4
Floating Point UnitIntegrated
Level 1 cache size  ? 4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size  ? 2 x 4 MB 16-way set associative caches (each L2 cache is shared between 2 cores)
MultiprocessingUniprocessor
Extensions & Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • EM64T / Extended Memory 64 technology / Intel 64  ?
  • VT-x / Virtualization technology  ?
Security FeaturesNX / XD / Execute disable bit  ?
Low power features
  • HALT state
  • Extended HALT state
  • Stop Grant state  ?
  • Enhanced SpeedStep technology  ?
Integrated peripherals / components
Integrated graphicsNone
Electrical / Thermal parameters
V core  ? 0.85V - 1.5V
Maximum operating temperature  ? 64.5°C
Maximum power dissipation  ? 167.13 Watt
Thermal Design Power  ? 130 Watt
Notes on Intel Core 2 Extreme QX6850
  • Binary compatible with 32-bit x86 software
  • Bus frequency is 333 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 1333 MHz

Popular Core 2 Extreme QX6850 comparisons

Detailed side-by-side comparison

If you want to compare in detail the Intel QX6850 with any other processor from our CPU database please select desired processor using one of the following methods:

  • Browse CPUs by:

  • Find processor by its name and/or partial specifications:

    You can specify any of the following: manufacturer name, family name, model number, part number, core name, microarchitecture, manufacturing process, socket name, operating frequency, bus speed, the number of cores and threads, cache size, TDP and GPU type. Here are some examples of searches: QX6850, HH80562XJ0808M, Intel Core 2 Extreme 3GHz, Kentsfield Socket 775 130 Watt, Core 4 cores 4 threads, 0.065 micron 8 MB noGPU


Historical price chart

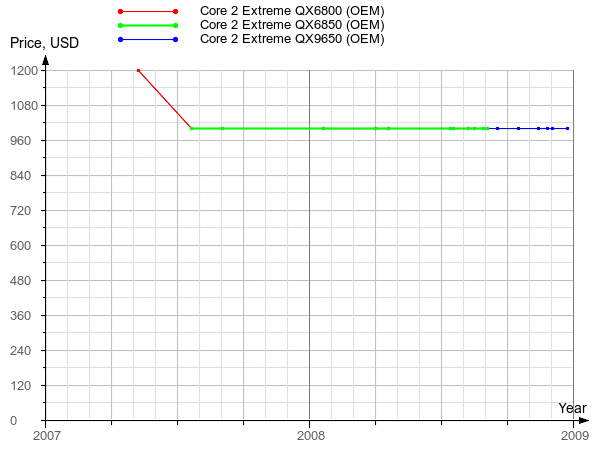

The chart below shows official prices of Intel Core 2 Extreme QX6800, QX6850 and QX9650 processors:

Historical official prices of Core 2 Extreme QX6800, QX6850 and QX9650 processors

FAQ

Q: I have an Intel QX6850 CPU. Is it possible to upgrade it?
A: Probably yes. Processor compatibility is determined by your motherboard. Please check CPU-Upgrade.com website for CPU support list for your board.

Core 2 Extreme QX6850 Overclocking

Sorry, overclocking information for this processor is not available at this time.


CPU ID information for the Core 2 Extreme QX6850

Detailed characteristics of processor's internals, including x86 instruction set extensions and individual instructions, high- and low-level technologies, are listed below. This list was acquired from an actual Intel Core 2 Extreme QX6850 processor with the help of the x86 CPUID instruction. Any discrepancies between CPUID features and official specifications are likely due to some features being disabled in BIOS, or due to a bug in our CPUID decoding algorithm. Different steppings of Intel processors may also have slightly different features.

Our CPUID database contains 6 records for this microprocessor. See all submitted records.

Use our CPU identification tool to check features of your processor.

Submission details
Manufacturer:IntelMeasured frequency:2999 MHz
CPU Family:Core 2 ExtremeComment:Engineering sample. G0 stepping.
Processor Number:QX6850
Part number (supplied):HH80562XJ0808MSubmitted by:crazybubba64
Part number (guessed):
HH80562XJ0808M
Submitted on:
S-Spec Number:QXTNCWID version:0.5
General information
Vendor:GenuineIntel
Processor name (BIOS):Intel(R) Core(TM)2 Extreme CPU Q6850 @ 3.00GHz
Cores:4
Logical processors:4
Processor type:Original OEM Processor
CPUID signature:6FB
Family: 6 (06h)
Model:15 (0Fh)
Stepping:11 (0Bh)
TLB/Cache details:3rd-level cache: 4-MB, 16-way set associative, 64-byte line size (Intel Xeon processor MP, Family 0Fh, Model 06h), 2nd-level cache: 4-MB, 16-way set associative, 64-byte line size
64-byte Prefetching
Data TLB: 4-KB Pages, 4-way set associative, 256 entries
Data TLB: 4-MB Pages, 4-way set associative, 32 entries
Instruction TLB: 2-MB pages, 4-way, 8 entries or 4M pages, 4-way, 4 entries
Instruction TLB: 4-KB Pages, 4-way set associative, 128 entries
L1 Data TLB: 4-KB pages, 4-way set associative, 16 entries
L1 Data TLB: 4-MB pages, 4-way set associative, 16 entries

Cache details
Cache: L1 data L1 instruction L2
Size: 4 x 32 KB 4 x 32 KB 2 x 4 MB
Associativity: 8-way set
associative		 8-way set
associative		 16-way set
associative
Line size: 64 bytes 64 bytes 64 bytes
Comments: Direct-mapped Direct-mapped Non-inclusive
Direct-mapped
1 cache per 2 cores

Supported instructions
Instruction set extensionsAdditional instructions
MMX CLFLUSH
SSE CMOV
SSE2 CMPXCHG16B
SSE3 CMPXCHG8B
SSSE3 FXSAVE/FXRSTORE
  MONITOR/MWAIT
  SYSENTER/SYSEXIT

Integrated features and technologies
Major featuresOther features
On-chip Floating Point Unit 36-bit page-size extensions
64-bit / Intel 64 64-bit debug store
NX bit/XD-bit Advanced programmable interrupt controller
Intel Virtualization CPL qualified debug store
Enhanced SpeedStep Debug store
  Debugging extensions
  Digital Thermal Sensor capability
  LAHF/SAHF support in 64-bit mode
  Machine check architecture
  Machine check exception
  Memory-type range registers
  Model-specific registers
  Page attribute table
  Page global extension
  Page-size extensions (4MB pages)
  Pending break enable
  Perfmon and Debug capability
  Physical address extensions
  Self-snoop
  Thermal monitor
  Thermal monitor 2
  Thermal monitor and software controlled clock facilities
  Time stamp counter
  Virtual 8086-mode enhancements
  xTPR Update Control

CPUs, related to Intel Core 2 Extreme QX6850

The list of related CPUs does not include all models. For the complete list, please see the related "Core" processors for socket 775 page.

Model Cores /
Threads		 Frequency L2
cache		 Multi-
processing		 TDP Features
Intel Core 2 Extreme family, Socket 775
   Core 2 Extreme X68002 / 22.93 GHz4 MB175WVT, ESS>
   Core 2 Extreme QX67004 / 42.66 GHz8 MB1130WVT, ESS>
   Core 2 Extreme QX68004 / 42.93 GHz8 MB1130WVT, ESS>
   Core 2 Extreme QX68504 / 43 GHz8 MB1130WVT, ESS
   Core 2 Extreme QX96504 / 43 GHz12 MB1130WVT, ESS>
   Core 2 Extreme QX97704 / 43.2 GHz12 MB1136WVT, ESS>
Intel Core 2 Extreme family, Core micro-architecture, Other sockets
   Core 2 Extreme QX97754 / 43.2 GHz12 MB2150WVT, ESS>
Other families, Core micro-architecture, Socket 775
   Celeron 440 (B)1 / 12 GHz512 KB1 VT, ESS>
   Celeron 4501 / 12.2 GHz512 KB135WVT, ESS>
   Celeron E34002 / 22.6 GHz1 MB165WVT, ESS>
   Celeron E35002 / 22.7 GHz1 MB165WVT, ESS>
   Pentium E67002 / 23.2 GHz2 MB165WVT, ESS>
   Pentium E68002 / 23.33 GHz2 MB165WVT, ESS>
   Core 2 Duo E85002 / 23.16 GHz6 MB165WVT, TXT, ESS>
   Core 2 Duo E86002 / 23.33 GHz6 MB165WVT, TXT, ESS>
   Core 2 Quad Q97054 / 43.16 GHz6 MB195WVT, TXT, ESS>
   Core 2 Quad Q96504 / 43 GHz12 MB195WVT, TXT, ESS>
 • Within each category, the CPUs are sorted from slower (at the top) to faster (at the bottom)
 • Background color of specs and features indicate whether they are better or worse than similar spec/feature of the Core 2 Extreme QX6850
 • Click on the >  icon to compare any CPU in the table with the Intel Core 2 Extreme QX6850 (Javascript required).
 • Features abbreviations:
VT - Virtualization
TXT - Trusted Execution technology
ESS - Enhanced SpeedStep

Pictures (8)


2012-08-02 21:45:01
Posted by: Yasso



2015-01-22 05:07:50
Posted by: Yasso



2020-07-10 11:21:09
Posted by: crazybubba64

Box front

2020-07-10 11:21:35
Posted by: crazybubba64

Box back

2020-07-10 11:21:59
Posted by: crazybubba64

Box side 1

2020-07-10 11:22:20
Posted by: crazybubba64

Box side 2

2020-07-10 11:22:54
Posted by: crazybubba64

Box top

2020-07-10 11:23:14
Posted by: crazybubba64

Box bottom
